SunJack 80 Watt Solar Kit - Includes Two 40 Watt Foldable Solar Panels with Parallel Adapter Cable

SunJack 80 Watt Solar Kit - Includes Two 40 Watt Foldable Solar Panels with Parallel Adapter Cable

Regular price $366.00 CAD
Regular price $366.00 CAD Sale price $366.00 CAD
Sale Sold out
Shipping calculated at checkout.
🚚 Order within the next 2 hours, 15 minutes for delivery by 02 Jan, 2025.

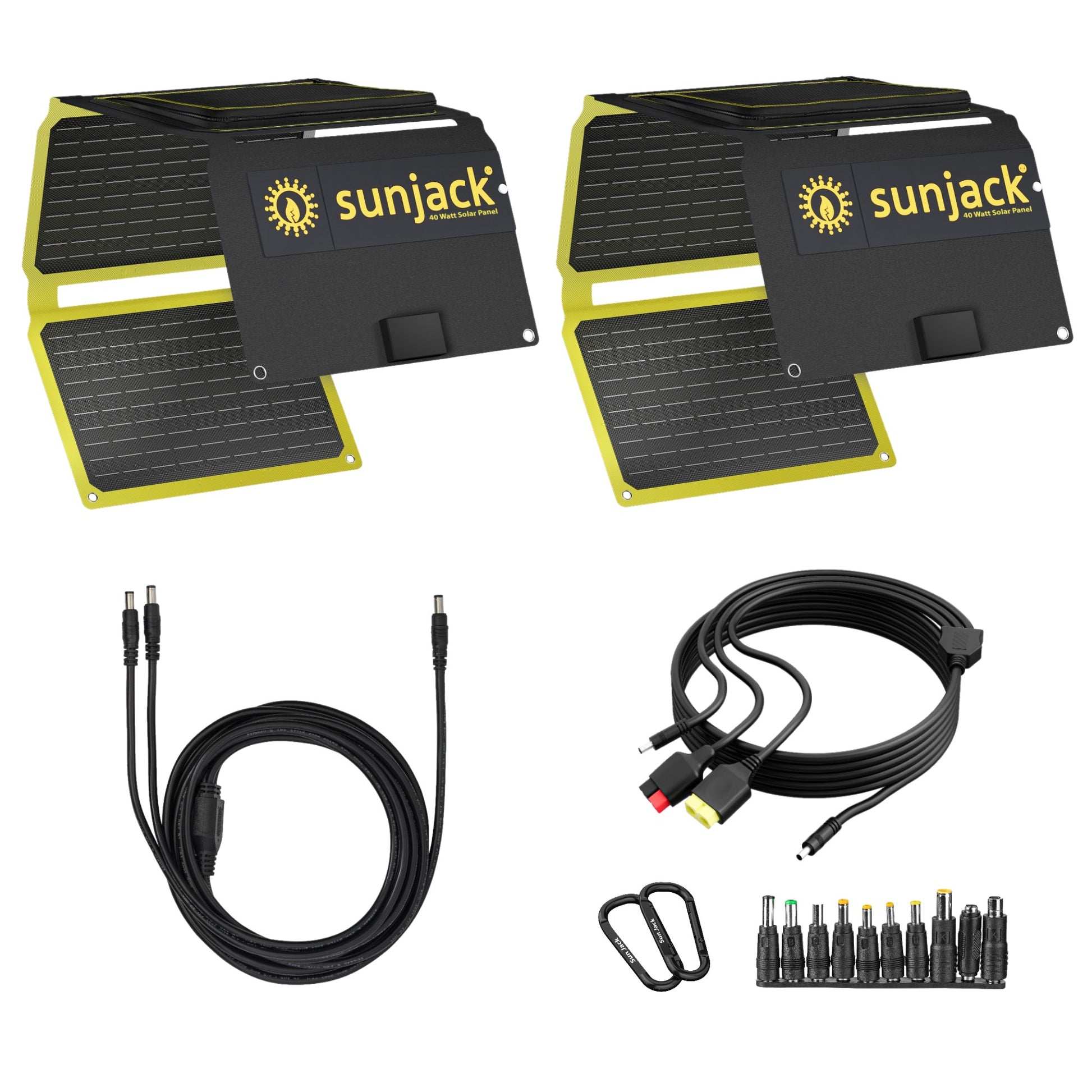

What's in the box :
  • 2 x SUNJACK 40 Watt Portable Solar Panels
  • 1 x SUNJACK Y-Branch Parallel Adapter Splitter Cable
  • 2 x SUNJACK Carabiners per Solar Panel
  • 1 x Adapter Cable (DC5521 to DC5521 + XT60 + Anderson) per Solar Panel
  • 10 x DC cable head adapters per solar panel (4.0*1.7mm, 5.5*1.7mm, 5.5*2.5mm, 5.5*3.0mm, 6.0*3.0mm, 6.5*4.4mm, 7.9*0.9mm, 7.9*5.5mm, 8.0*2.0mm, 5.5*2.1mm female to female)
  • Quickstart Guide
  • Solar Panel Manual
  • 2 Year Hassle Free Warranty
  • Energy Independence!
View full details

As Recommended By

Logo 2 Logo 3 Logo 1 Logo 4 Logo 5

The SunJack 80 Watt Solar Charger Kit - Compact, Powerful and Weatherproof

Designed in the USA. Backed by a local American company.

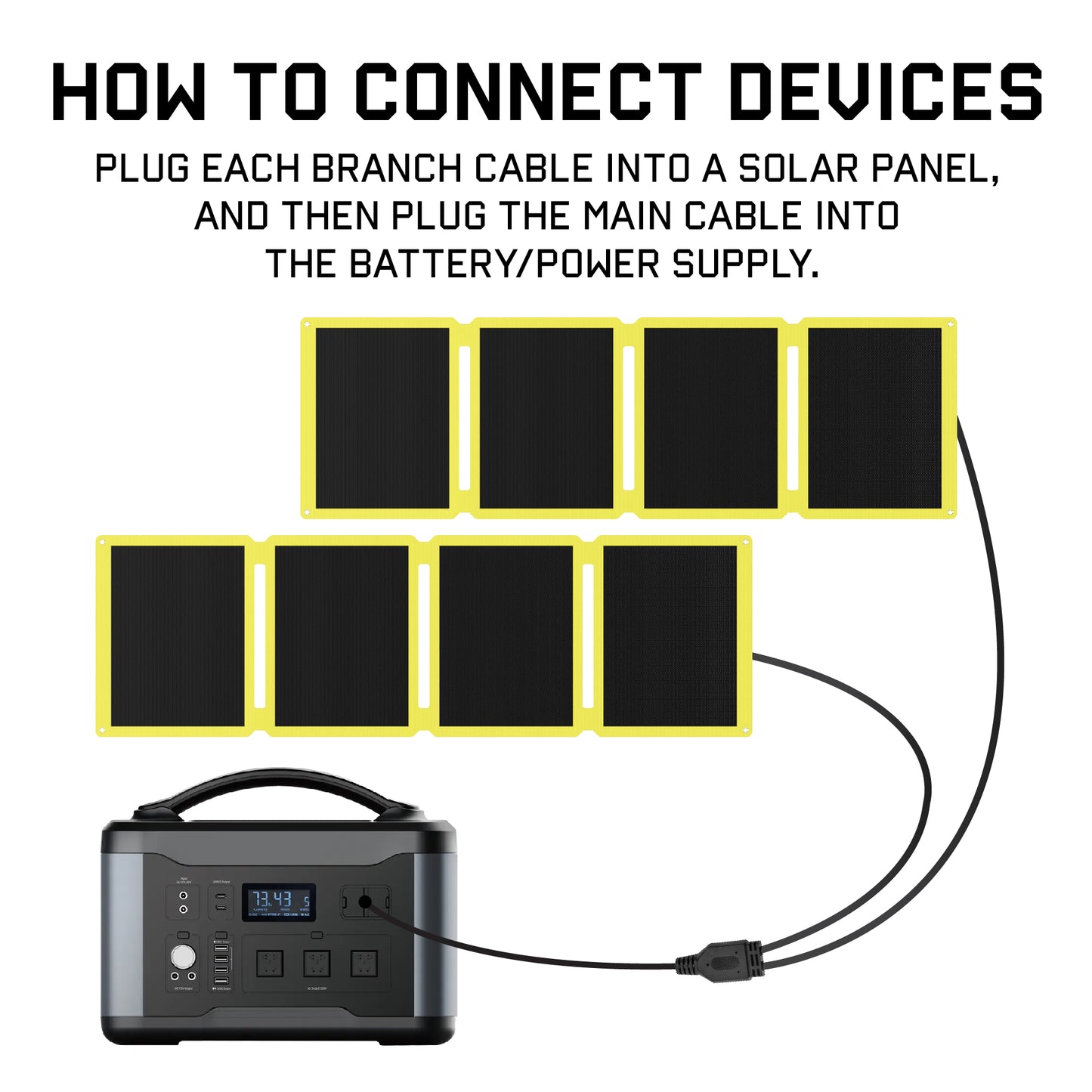

  • PARALLEL SOLAR PANEL CONNECTION: Connect two 40 watt solar panels to a single power supply for a combined maximum output of 80 watts. When connecting the two 40 watt solar panels using the included parallel adapter cable, the connection will combine the output current (amps) of each solar panel, but the output voltage will remain unchanged. For example, if connecting two solar panels that each produce 21 volts and 2.0 amps, the total combined output will equal 22 volts and 4 amps. Re-charge devices such as power stations or solar power generators much faster than when using only a single solar panel, or use the solar panels separately to charge multiple devices at the same time.

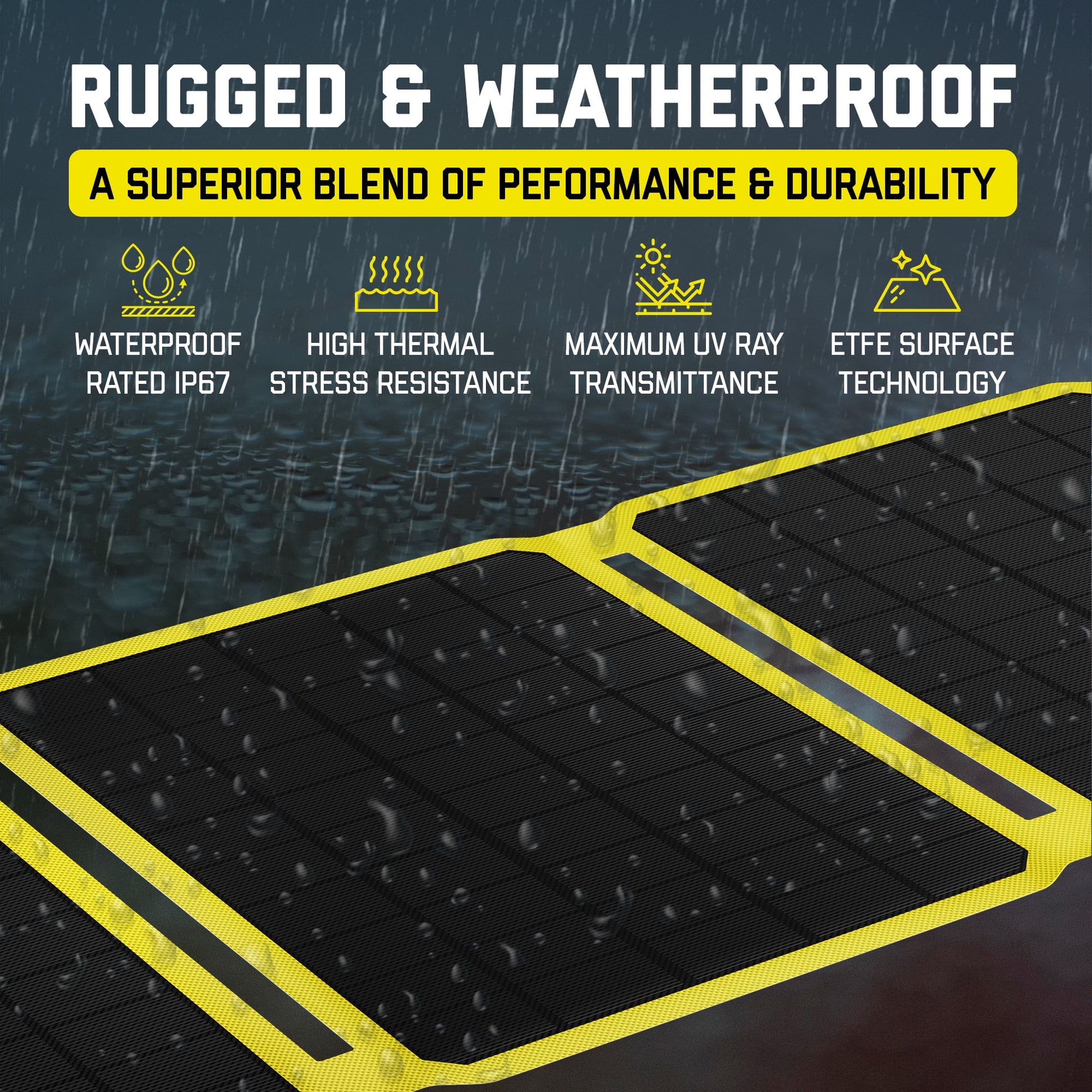

  • RUGGED, DURABLE & WEATHERPROOF: Designed for all weather conditions and environments. The solar panels are sealed with a waterproof ETFE exterior layer that improves performance and durability, extends the panel’s lifespan and requires far less maintenance when compared to the exterior construction used by most portable solar chargers. The USB ports are waterproof rated IP67, the junction box’s PCB is coated with a waterproof seal and silicone bonded to the panel.

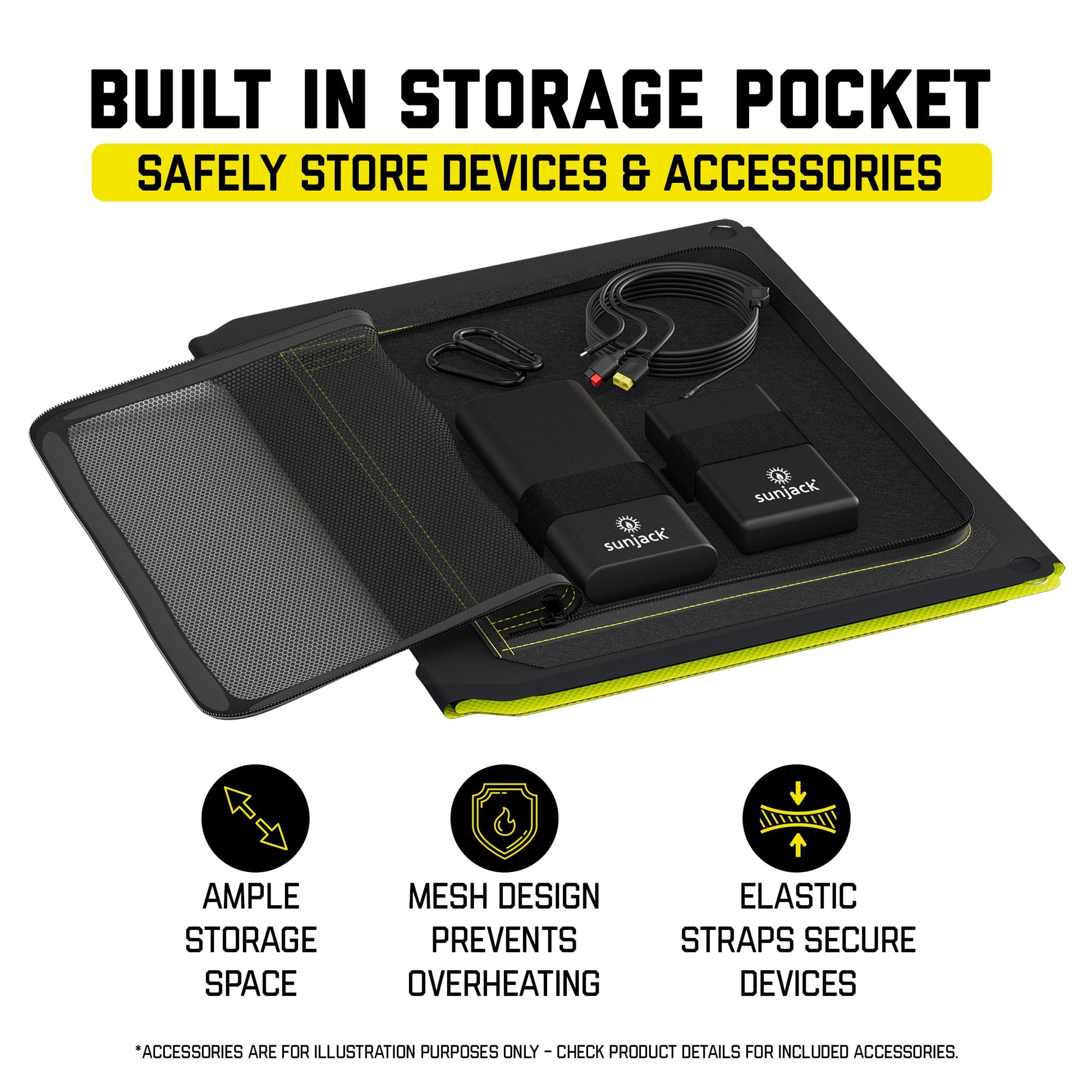

  • COMPACT & PORTABLE: Each solar panel is designed as a 4 panel system. The solar panels fold down to the size of a tablet and easily fit into most backpacks. The integrated pocket provides storage space for electronics and accessories and the mesh design intuitively allows airflow to prevent devices from overheating. The elastic straps secure phones, power banks and more during storage, travel and transportation.

  • POWERFUL & FAST CHARGING SPEEDS: With up to 80 watts of power (40 watts for each solar panel), the monocrystalline panels sealed with ETFE provide maximum efficiency and UV-ray permeability. Each solar panel's 21V DC5521 port (25.1V open circuit voltage) provides enough charging power for most power stations while the dual USB ports can charge most USB-C (PD30W) and USB-A (18W max) devices. The ETFE construction is highly efficient, with a UV permeability of 95% compared to 80% from standard PET construction.

  • SMART TECHNOLOGY: The PD30W USB-C port offers greater compatibility and increased stability in low light settings when charging at higher voltages. The panel includes multiple IC chips letting the USB ports charge simultaneously with the DC port, at the most efficient voltage, and provide the quickest, yet safest, charging speed. Short circuit, over-load, over-heat, over-charge, over-voltage, and current limiting protection. Automatic restore if shade occurs.

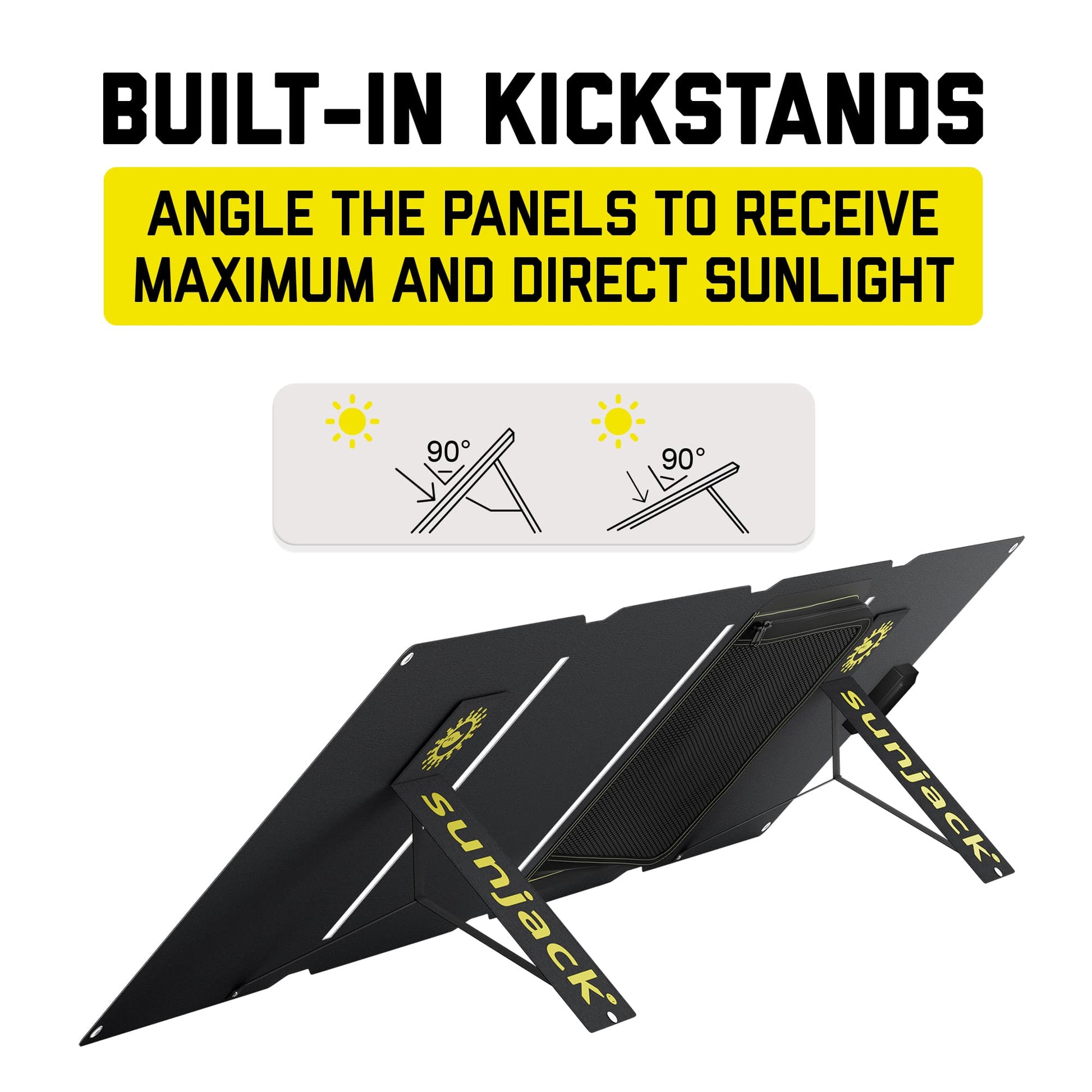

  • PREMIUM FEATURES & DESIGN: Includes everything you need for charging on the go. Angle the panels toward the sun using the built in kickstands or hang the panel from different objects using the included carabiners. The waterproof construction allows you to lay the panel flat on the ground without causing water damage to the panel or output ports. The included adapter cable with DC, XT60 and Anderson plugs and the DC plug adapters ensure compatibility with a wide range of devices.

  • MULTI-USE & WIDE COMPATABILITY: Compact enough to easily transport and powerful enough to charge most devices. Ideal for camping, backpacking, hiking, outdoor adventures and is essential in any disaster, emergency and hurricane prep kit for survival. The solar panels panel can charge a wide range of electronic devices, including power stations that accept DC and most USB devices including your iPhone, Samsung, Pixel, iPad, tablets, laptops, powerbanks and more.

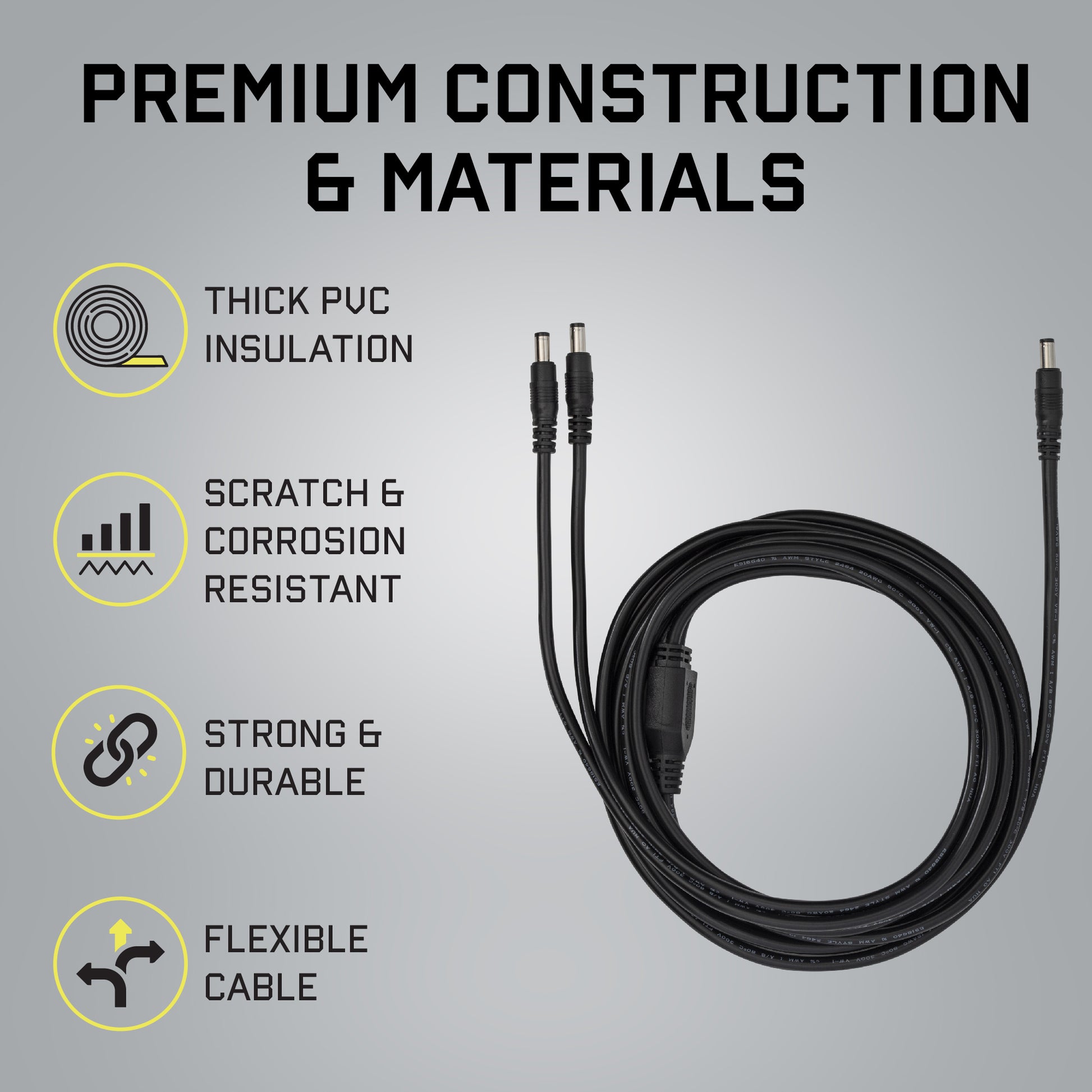

  • PARALLEL ADAPTER CABLE: Made from premium materials, safe to use and very durable. Outer PVC insulation is thick, scratch and corrosion resistant, and flexible. Max voltage is 300V. The main cable gauge is 18AWG and can carry a max 8A current. Each branch cable is 20AWG and can carry a max 5A current. Total cable length is 10ft – main cable is 7ft long and each branch cable is 3ft long. The extended length lets you easily connect two solar panels to a power source. Cable can be used in a variety of setting and with all low voltage DC powered devices that are compatible with DC 5.5mm x 2.1mm, such as CCTV Security Cameras, LED Lights and more.



Full 100% Satisfaction Guarantee:
If for any reason you are not satisfied, please email us - We will keep you powered!

For International Shipments, Please Note:
Customer is responsible for all duties and taxes on international shipments. International shipments are restricted to certain countries - please refer to the International Shipping section of our Shipping Info page for more details.

Solar Panel Specifications (the details listed below pertain to one 40W solar panel, unless otherwise specified):
Solar Capacity 40 Watts (80 Watts Total Combined)
Solar Cell Type Monocrystalline
Outer Construction ETFE

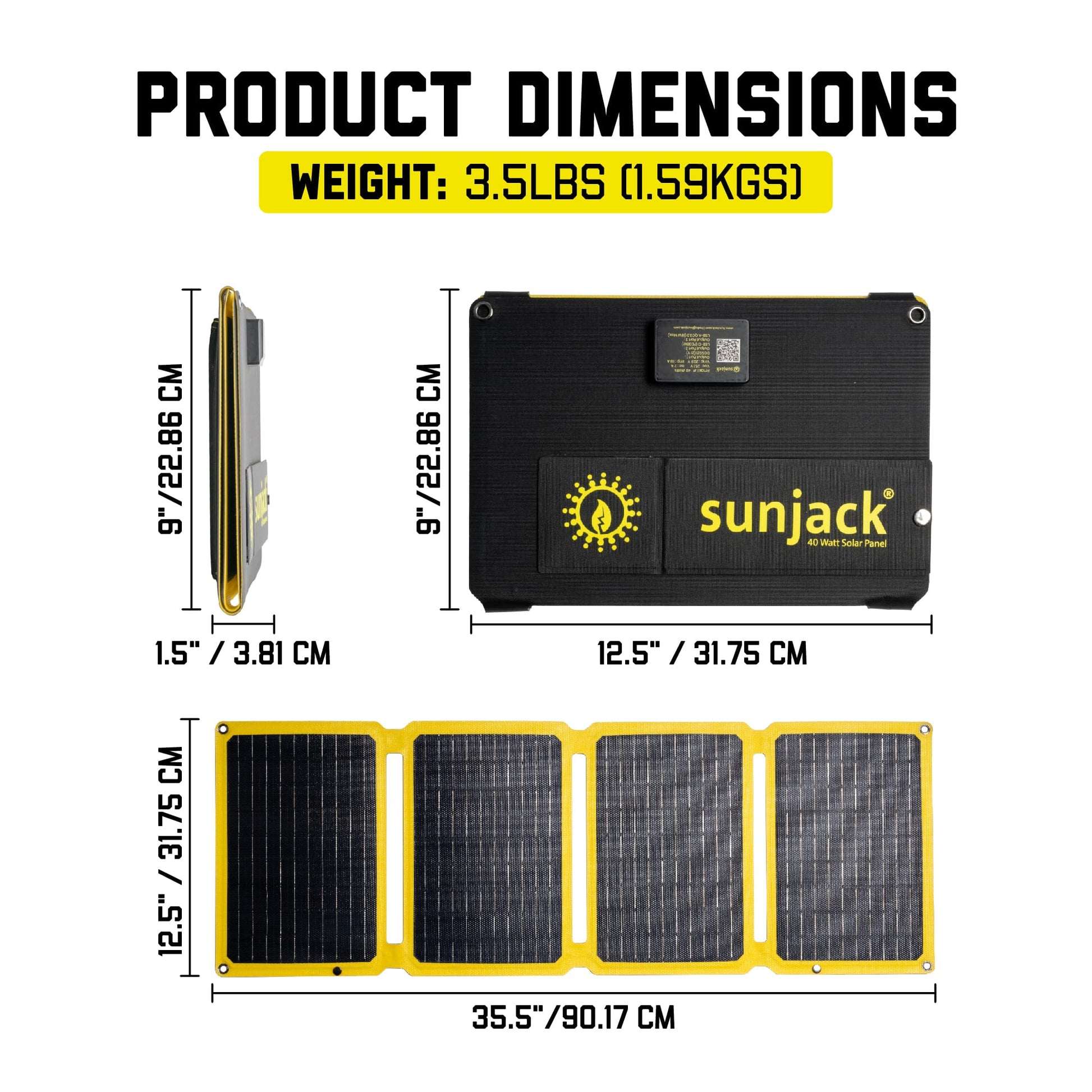

Dimensions (Closed) 9" x 12.5" x 1.5"
Dimensions (Open) 35.5" x 12.5" x 1"
Net Weight (one panel) 3.5 lbs (1.59 kg)

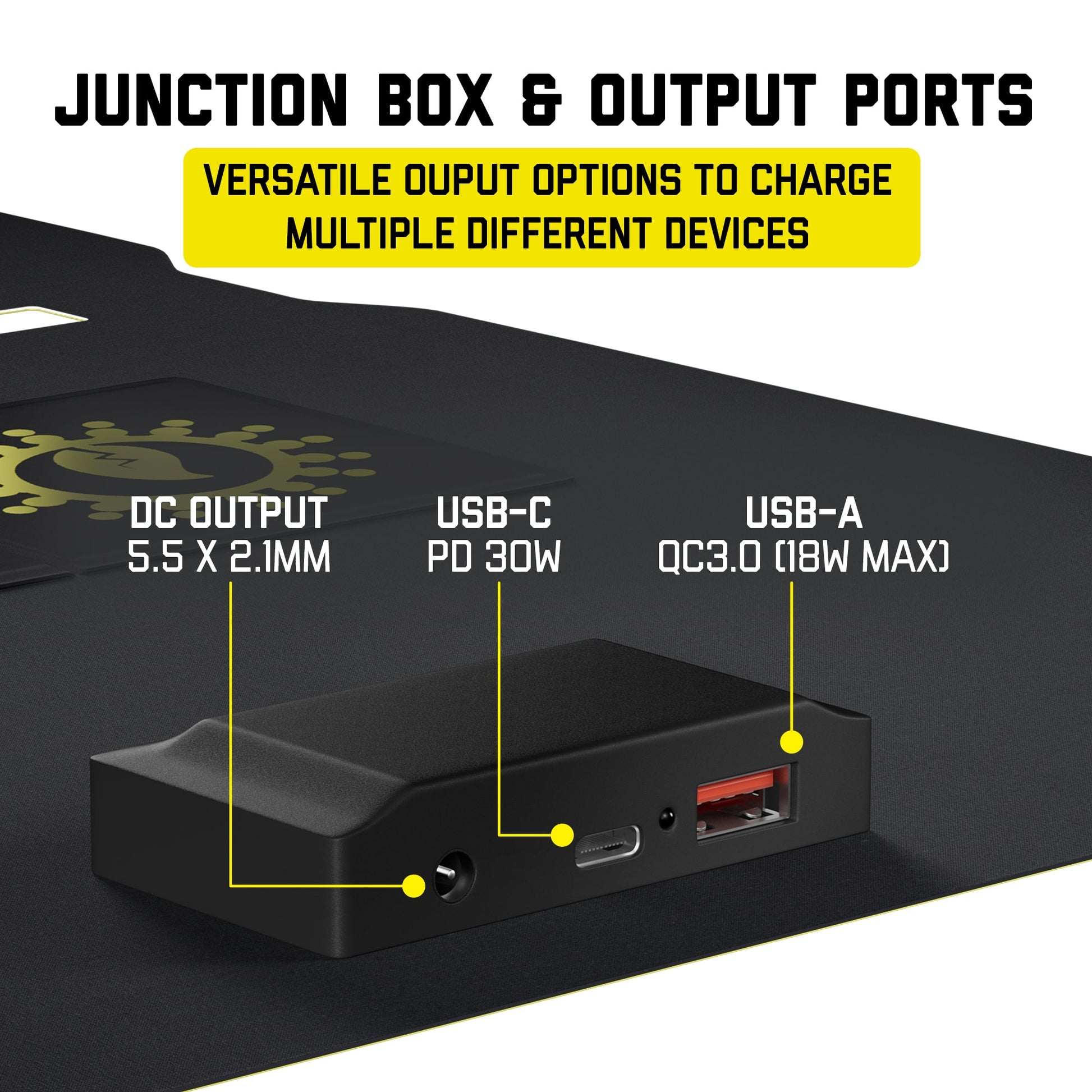

Output Port 1 USB-C (PD 30W)
Output Port 2 USB-A (5V/3A, 9V/2A, 12V/1.5A)
Output Port 3 DC5521 (21V)
Rated Peak Power (Pmax |W) 40 Watts
Open Circuit Voltage (Voc |V) 25.1 V
Short Circuit Current (Isc |A) 2 A
Max Power Voltage (Vmp|A ) 20.9 V
Max Power Current (Imp |A) 1.9 A
Module Efficiency (%) 24%
Operating Temperature (°F/°C) -4°F to 149°F (-20°C to 65°C)
Standard Test Conditions 1000W/m2, 25°C, AM1.5

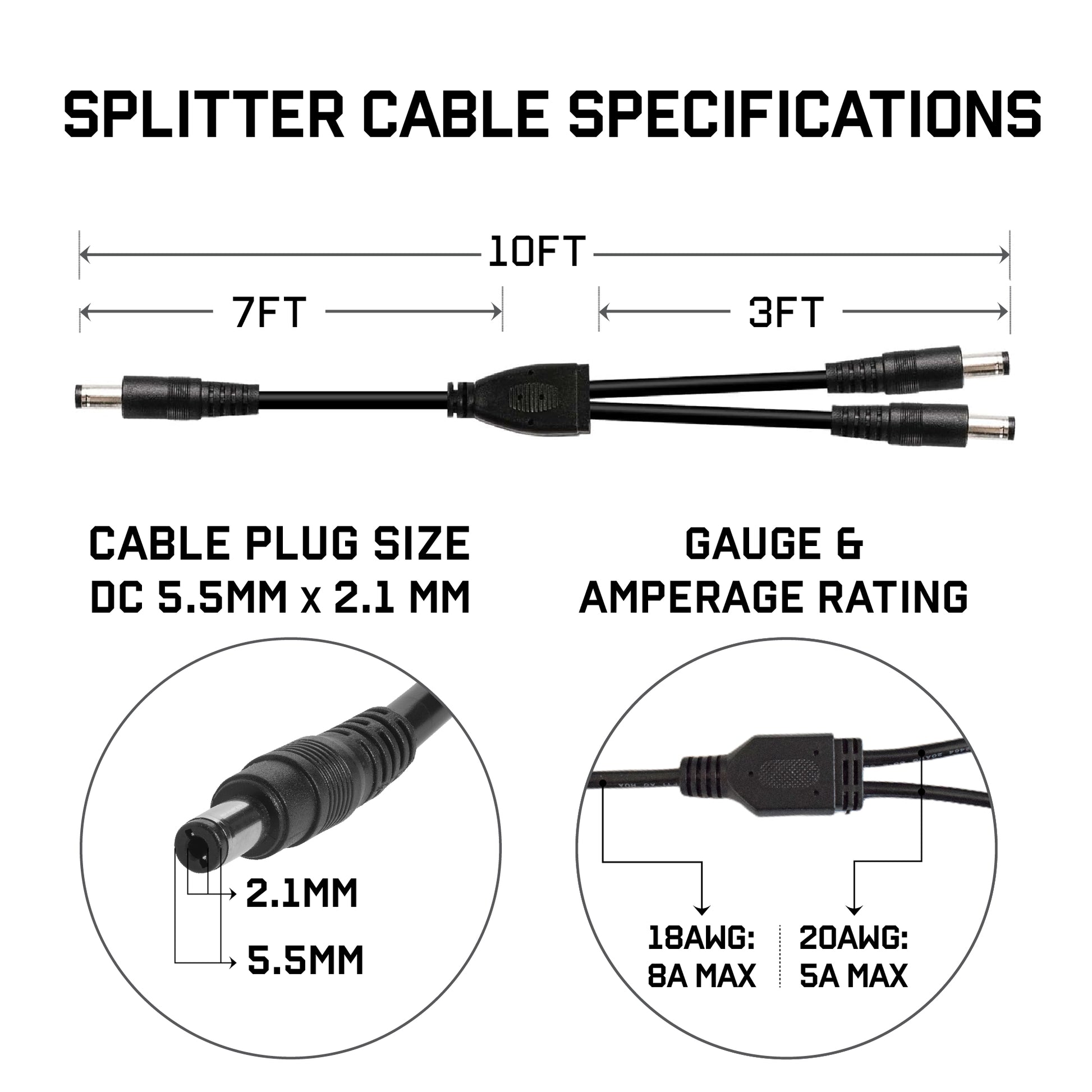

Parallel Adapter Cable:

Total Cable Length 10ft
Main Cable Length 7ft
Branch Cable Length (each) 3ft
Plug Size DC 5.5mm x 2.1mm
Main Cable Gauge 18AWG (8A max current)
Branch Cable Gauge (each) 20AWG (5A max current)
Max Voltage 300V
